FRLS - Multistrand
XTRA GARD - FRLS has special flame retardant, low smoke emitting and toxic fumes suppressing properties, in addition to the properties required by IS-694:1990. 0.75 Sq mm to 95.0 Sq mm FR Multistrand Cables - House Gard - FR. In the case of fire, conventional PVC insulated wires give out thick black smoke and toxic fumes of hydrochloric acid gas. This impairs visibility and hampers rescue operation. Xtra Gard on the contrary, not only emits very little smoke and toxic gases, but also retards the spreading of fire. It is thus ideal of concealed and conduit wiring in multi-storied high rise buildings such as hotels, banks, hospitals, factories, commercial complexes and residential apartments etc. Range of FRLS Multistrand Cables - Xtra Gard 1.0 Sq mm to 6.0 Sq mm FRLS Multistrand Cables - Xtra Gard
Special Features
- Superior Fire Retardant Properties
- Emits Non-Toxic Fumes
- Self Extinguishing
- Moisture Resistant
- Low Oxygen Entrapment
- Contains Fire Fighting Molecules
Technical Data
| Working voltage | Upto 1100 V. |
|---|---|
| Temperature range | -15°C to +70°C |
| Sizes | Available in 1.0, 1.5, 2.5, 4.0, and 6.0 sq. mm |
| Color codes | Red, Yellow, Blue, Black, and Green (for earthing ) |
| Specification | IS 169 : 1990. |
| Packing | In 90 meter coils in attractive cartons |
Recommended applications
| Sizes | Specification |
|---|---|
| 0.75 / 1.0 Sq. mm | Panels, Lights, Fans |
| 1.5 Sq. mm | T.V. / V.C.R. / Cooler / Iron / Mixer / Vaccum Cleaner |
| 2.5 Sq. mm | Fridge, Microwave / Washing Machine / Geyser |
| 4.0 Sq. mm | A.C. / Pump Motor |
| 6.0 Sq. mm | Distribution Board Wiring |
Recommended applications
These are recommended application only. Exact load of appliances / machinery should be checked for current requirement and appropriate wire size should be chosen accordingly.
FR-LSH Properties (Improved Fire performance, Category C2)
| Sizes | Specified Values |
|---|---|
| Critical Oxygen Index | Oxygen Index minimum 29% |
| Temperature Index | Temperature Index min 21% at 250° C |
| Test for Halogen Acid Gas Evolution | Hydrochloric acid gas released 20% maximum by weight |
Flame Retardant Low Smoke (FRLS) Single Core Unsheathed Flexible cables in Voltage grade upto 1100 Volts.
| Nominal Cross sectional area of Conductor | Number/Nom. Of Wire | Nominal Thickness of Insulation | Overall Diameter (Approx) | Current Carrying capacity # 2 cables single phase | Curent Carrying Capacity | |
|---|---|---|---|---|---|---|
| Sq. mm | mm | mm | mm | Amps | Amps | Amps |
| 1.0 | 14/0.3* | 0.7 | 3.2 | 12 | 13 | 18.10 |
| 1.5 | 22/0.3* | 0.7 | 3.4 | 14 | 17 | 12.10 |
| 2.5 | 36/0.3* | 0.8 | 4.2 | 19 | 24 | 7.41 |
| 4.0 | 56/0.3* | 0.8 | 4.8 | 26 | 31 | 4.95 |
| 6.0 | 84/0.3** | 0.8 | 5.6 | 34 | 40 | 3.30 |

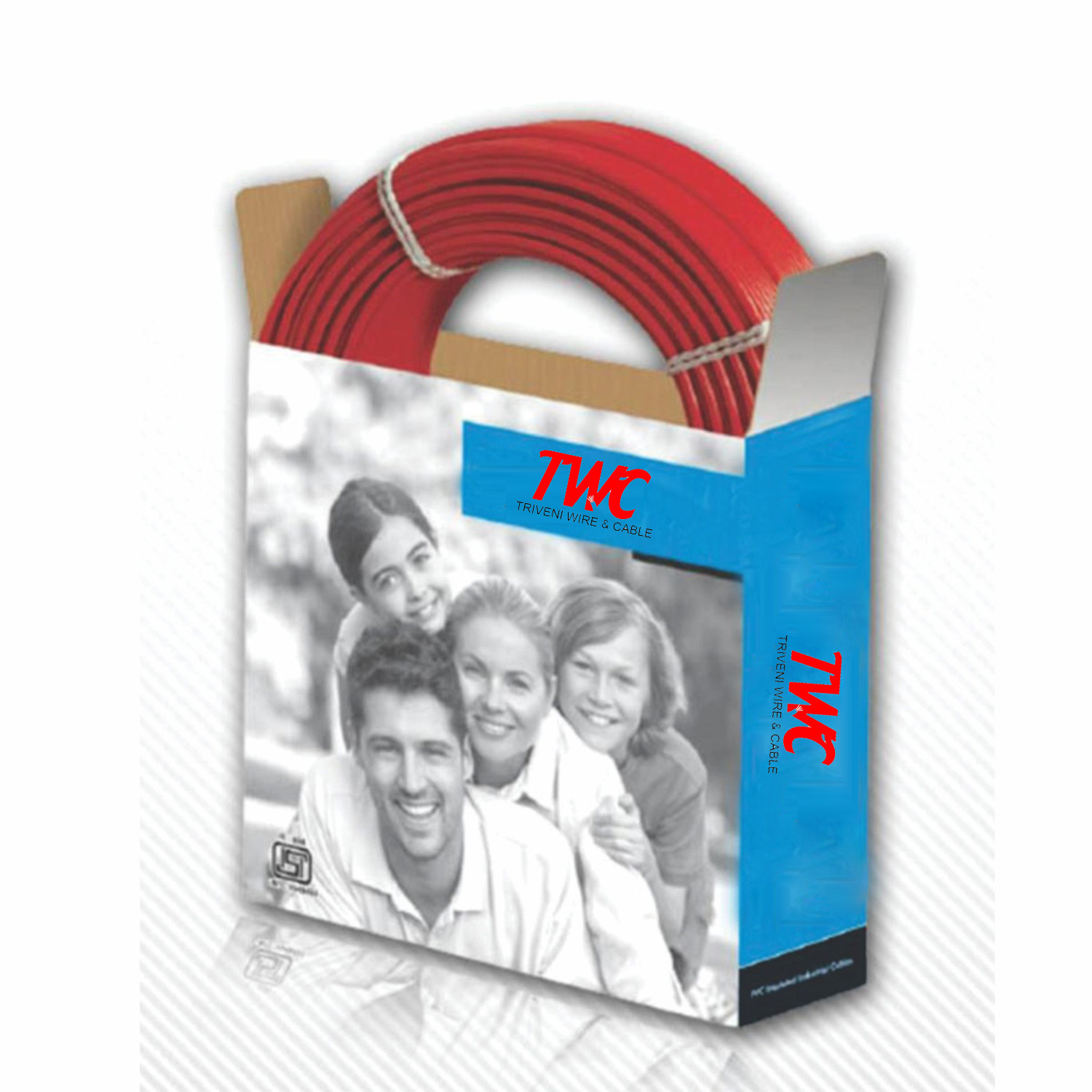

Standard packing - 90 meters in attractive cartons.
Colours available - Red, Yellow, Blue, Green (for earthing) & Black.
